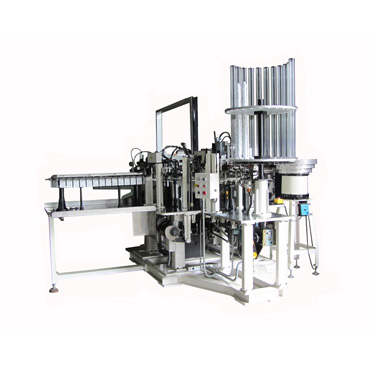

24H Energy Saving Lamp Assembly Machine

Availability: In stock

Model number: 24HESLA

Inquiry
Quantity

1. Description:

This machine’s function is auto press with upper cap and lower cap,base head feeding upper cap to lock . Then, inspecting the glass tube and auto welding the base head.


2. Standard:

2-1 T3 or T4.

2-2 Spiral or 3U.

2-3 17W~27W.

2-4 Capacity1000pcs/ hr. Adjust speed by frequency converter.

3. Function:

3-1 Glass tube and lower cap by manual feeding to the conveyer and auto feeding the head.

3-2 Auto press with upper cap and lower cap.

3-3 Base head auto feeding upper cap to lock.

3-4 Glass tube testing light. The defective tube no welding.

3-5 Base head press close device.

3-6 Base head auto welding.

3-7 Touch panel and PLC control.

3-8 After cooling weld, choose to qualified and unqualified tube.


4. Dimension & Weight:

4-1 Dimension: 4500x3300x2500mm

4-2 Weight: 3800kg


5. PowerAC380V 50Hz 5KW
